Last updated 4/29/03 Click on photos for large view.A/C controls and evaporator in hanging locker in salon. |
|||
 |

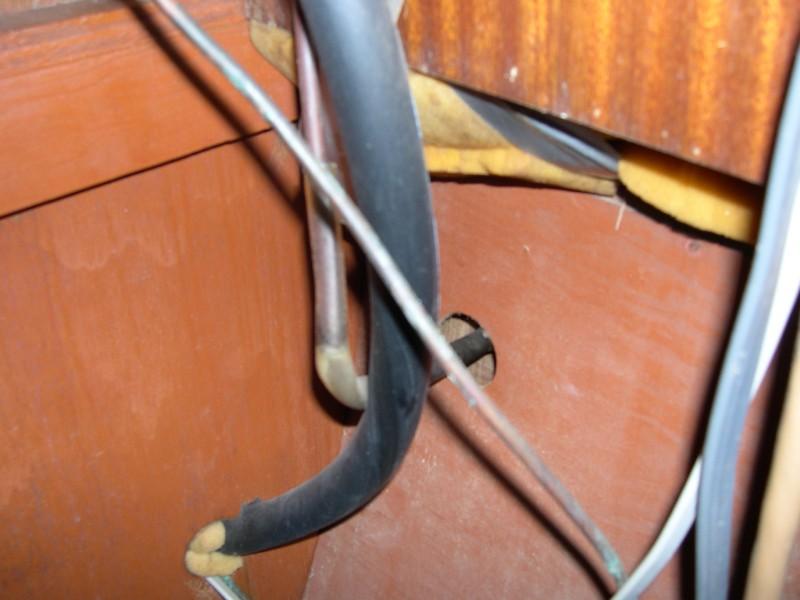

Forward to starboard is condensation drain to outside. Insulated pipe headed forward is the freon to the evaporator in the galley. |  |

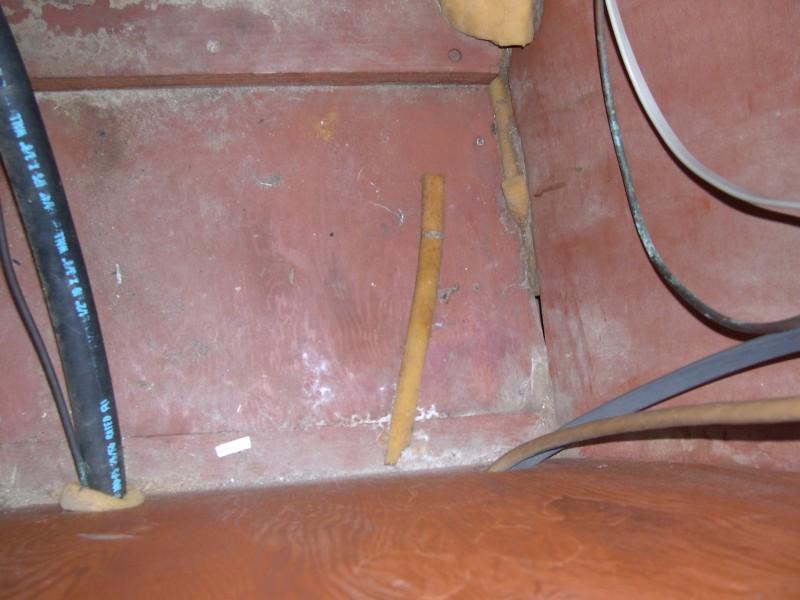

Straight down, freon in/out from compressor on left. Electrical connections to right. |
 |

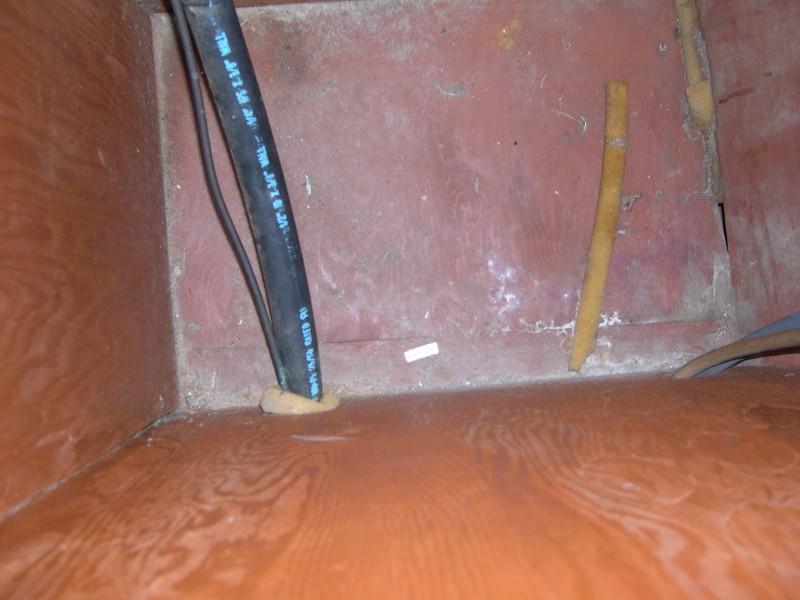

Another view. |  |

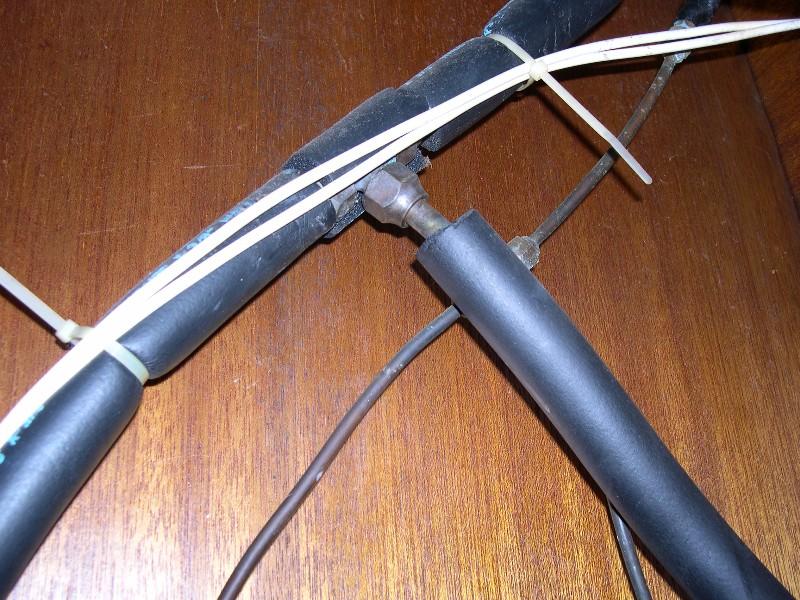

I think this to stern. It's the T-connections to feed the two condensors. |
 |

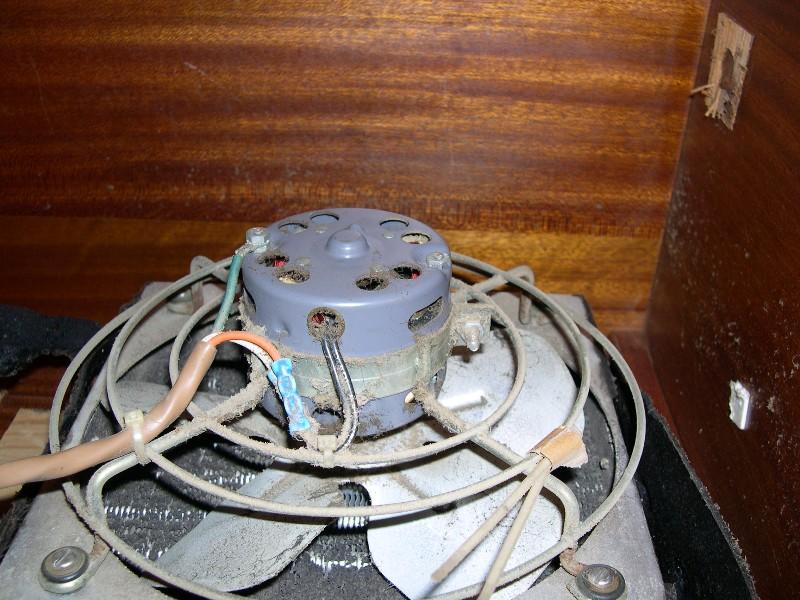

Fan |  |

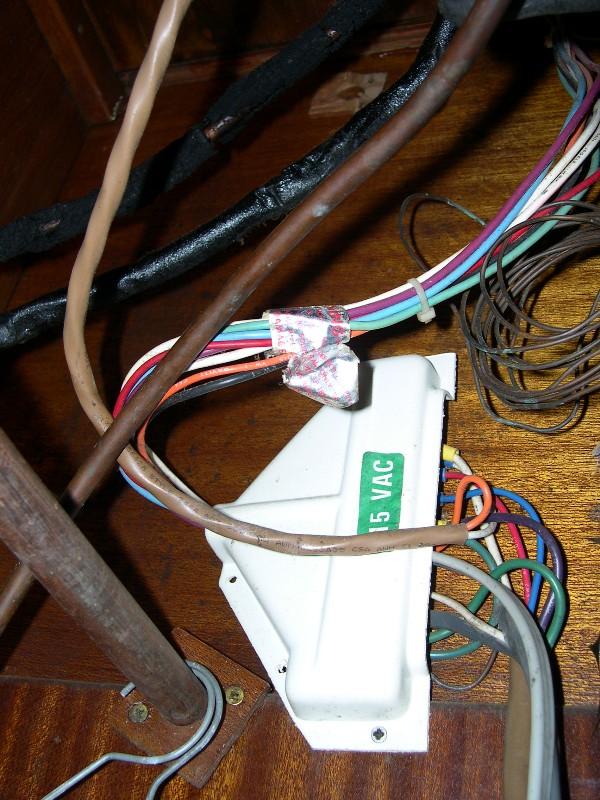

Electrical junctions. |
 |

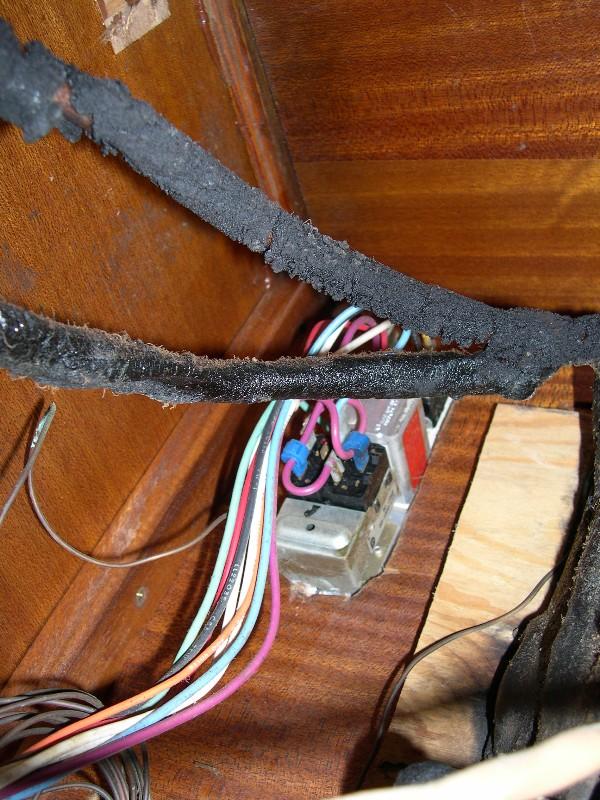

Rear of A/C controls. |  |

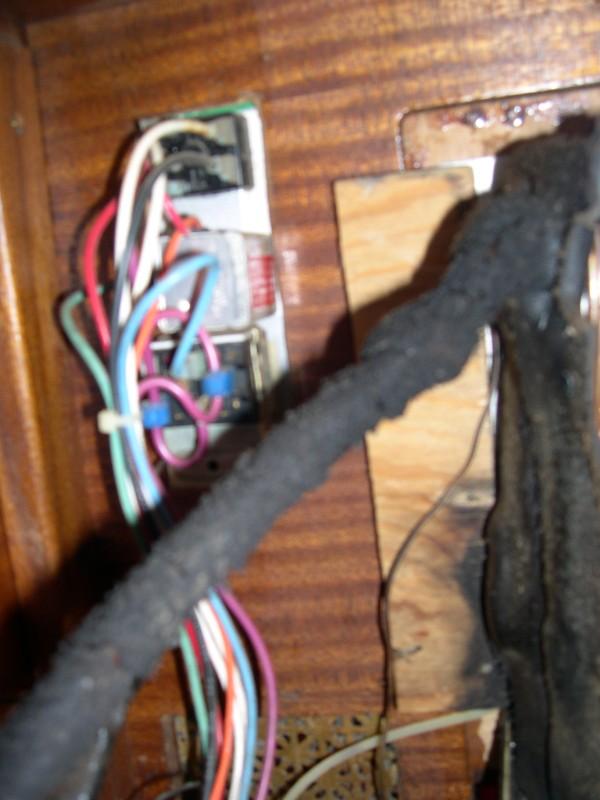

Another view of controls. |
